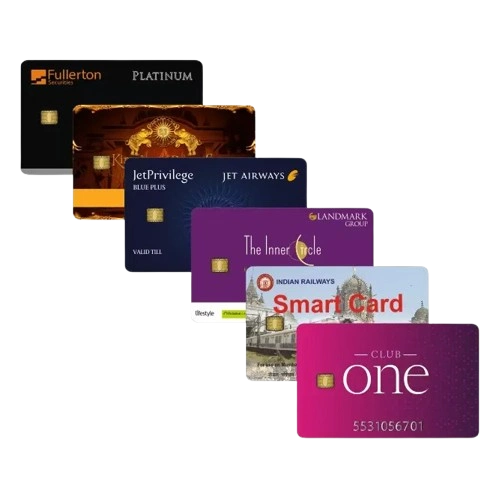

Contact Cards
Contact Smart Cards are embedded with memory or microprocessor chips that require direct contact with a reader for data exchange. These are typically used in applications demanding high security and data integrity, such as banking (EMV cards), government-issued IDs, SIM cards, and smart ticketing systems. The cards conform to ISO/IEC 7816 standards and are available in various memory configurations, including FM4442 & FM44428. Our contact cards are manufactured using high-grade PVC or PET materials with superior printing and durability. These cards ensure secure encryption, long lifespan, and efficient read/write cycles, making them ideal for systems where secure physical verification is necessary.
Description
Contact Cards
Physical Parameters
| Dimensions | 86mm x 54mm | |||
| Weight | 10 g | |||
| Encasement / Material | PVC, PET, PETG and PC Material | |||
| Surface Finish | Matte, Frosted or UV Coated | |||
| Color | Blank White, Peel-off layers / Poly Bag packing | |||
| Thickness | 0.76 mm / 30 MIL, Variations Available | |||
| Card Lifespan | Up to 2 years | |||
| Working Frequency | 125 Khz (Low Frequency) | |||
| Working Protocol | ISO 7816 compatible | |||
| Chip Type | FM4442 or FM44428 | |||
| Memory Capacity | FM4442:256 x 8 bits (2Kb EEPROM); FM44428:1024 x 8 bits (8Kb EEPROM) | |||
| Interface | Contact-based | |||
| EEPROM Size | 1024 bytes, 4096 bytes, 655365 bytes | |||
| Data Retention | Up to 10 Years | |||
| Operating Temperature | -25 to +70 degree Celsius | |||
| Storage Temperature | -25 to +50 degree Celsius | |||
| Package | 200 Qty in 1 box | |||
| Weight | 1.5 kg per box | |||
| Printing | Yes available for both side | |||
| Lamination | Double side coated | |||
ORDER INFORMATION
| Part No. | IDT.CC1K,IDT.CC4K,IDT.CC64K |
ID Tech Solutions is a manufacturer, provider, seller, and distributor of a wide range of Plastic & RFID Cards. All ID Tech products meet the highest international quality standards. At ID Tech Solutions, we are dedicated to providing innovative solutions that redefine the plastic and smart card industry. Explore our comprehensive range of products, including Blank Plastic Cards, Gift Cards, ID Cards, Loyalty Cards, Contact Cards, Combi Cards, Proximity Cards, High-Frequency Smart Cards, UHF Smart Cards, and more. Choose ID Tech Solutions for unparalleled expertise, technological excellence, and uncompromising quality in the realm of plastic and smart card solutions. To know more, contact us.
