Combi Cards
Combi Smart Cards, also known as hybrid or dual-interface cards, combine two or more technologies into one card to allow interaction with multiple systems using different communication methods. These cards typically integrate combinations like Contact + MIFARE, MIFARE + UHF, Proximity + NFC, or UHF + Proximity, depending on the client’s requirements. They are ideal for use-cases such as multi-functional ID cards in universities (library + attendance + payment), government cards (eKYC + transit), or corporate environments (access + secure login). ID Tech Solutions offers highly customizable combi cards with precision-embedded chips and secure lamination, making them a versatile and future-proof solution for organizations seeking to unify their card infrastructure.
Description
Combi Cards
Physical Parameters
| Dimensions | 86mm x 54mm | |||
| Weight | 10 g | |||
| Encasement / Material | PVC, PET, PETG and PC Material | |||
| Surface Finish | Matte, Frosted or UV Coated | |||
| Color | Blank White, Peel-off layers / Poly Bag packing | |||
| Thickness | 0.76 mm / 30 MIL, Variations Available | |||
| Card Lifespan | Up to 2 years | |||
| Working Frequency | 865 – 928 MHz (UHF), 125 KHz (LF), 13.56 MHZ (HF) | |||
| Working Protocol | EPC Class1 Gen2 ISO 18000 – 6C and ISO 14443A | |||
| Memory Capacity | TID: 64 bits, EPC: 96-480 bits, USER: 512 bits | |||

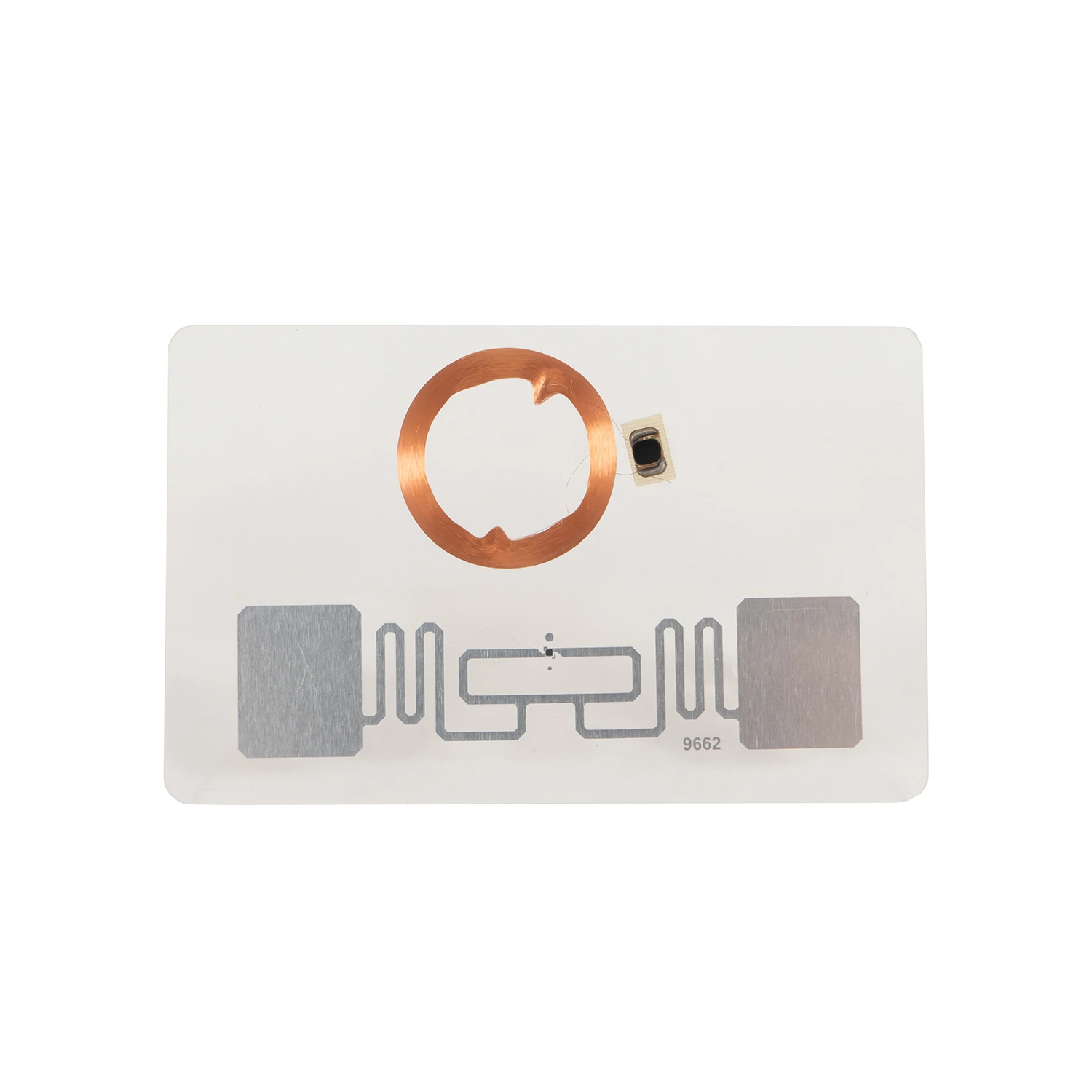

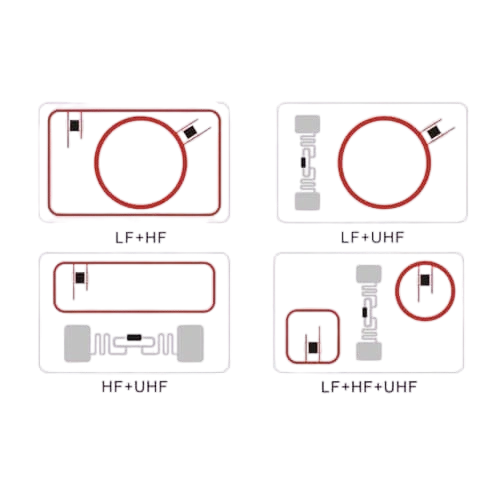

| Chip Type | HF + LF (Mifare + 4100) HF + UHF (Mifare + Alien 9662) LF + UHF (EM 4100 + Alien 9662) | |||
| Working Mode | Read and Write | |||
| Reading Range | Up to 10m | |||
| Data Retention | Up to 10 Years | |||
| Anti-Collision | Yes | |||
| Operating Temperature | -25 to +70 degree Celsius | |||
| Storage Temperature | -25 to +50 degree Celsius | |||
| Package | 200 Qty in 1 box | |||
| Weight | 1.5 kg per box | |||
| Printing | Yes available for both side | |||
| Lamination | Double side coated | |||
ORDER INFORMATION
| Part No. | HF + LF (IDT.DFC.01) HF + UHF (IDT.DFC.02) LF + UHF (IDT.DFC.03) |
