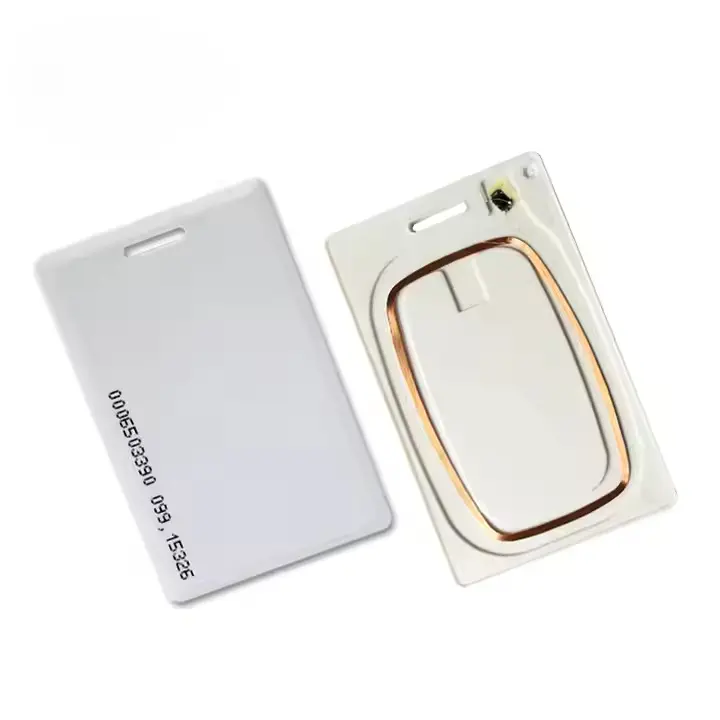

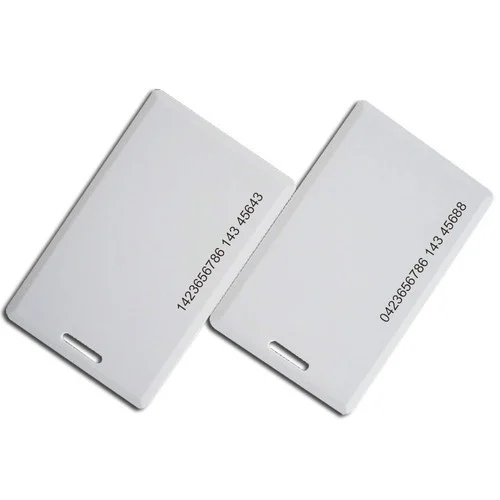

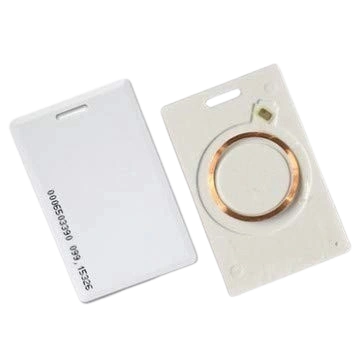

Proximity Cards
Proximity Smart Cards function at 125 kHz and are widely used for short-range access control and identity verification in office buildings, hotels, and secure facilities. These low-frequency cards offer reliable performance and are ideal for basic access and attendance systems that do not require data encryption. We offer proximity cards with chipsets such as EM4100, EM4200, TK4100. Although limited to read-only or low-security applications, these cards are popular due to their affordability, ease of integration, and stable performance even in environments with interference from metal or liquids. The cards are compliant with ISO/IEC 7810 form factor standards and can be supplied with custom printing, embossing, or encoding options.
Description
Proximity Cards
Physical Parameters
| Dimensions | 86mm x 54mm | |||
| Weight | 10 g | |||
| Encasement / Material | PVC, PET, PETG and PC Material | |||
| Surface Finish | Matte, Frosted or UV Coated | |||
| Color | Blank White, Peel-off layers / Poly Bag packing | |||
| Thickness | 0.76 mm / 30 MIL, Variations Available | |||
| Card Lifespan | Up to 2 years | |||
| Working Frequency | 125 Khz (Low Frequency) | |||
| Working Protocol | ISO 14443A | |||
| Chip Type | EM 4200, TK 4100 (Compatible), T5577, EM 4305 | |||
| Working Mode | EM 4305 Read only | |||
| Reading Range | 2 mm (Thin Proximity), 5 mm (clamshell Thick Proximity) | |||
| Data Retention | Up to 10 Years | |||
| Anti-Collision | Yes | |||
| Operating Temperature | -25 to +70 degree Celsius | |||
| Storage Temperature | -25 to +50 degree Celsius | |||
| Package | 200 Qty in 1 box | |||
| Weight | 1.5 kg per box | |||
| Printing | Yes available for both side | |||
| Lamination | Double side coated | |||
Order Information
| Part No. | IDT.TPC.N IDT.TPC.WN |
